Introduction
Custom molds can unlock packaging exclusivity, but how much do they really cost—and what’s the return? For cosmetic brands planning long-term growth or preparing for a product launch, mold cost is often a crucial yet confusing piece of the equation. This article breaks it down in numbers and in strategy.
How Much Does a Custom Mold Actually Cost?
The price of a custom mold depends on several variables: type of mold (blow or injection), the number of cavities, material complexity, and whether you’re creating a single component or a full dispensing system. Here’s what typical market prices look like in China:
- PET Blow Molds:
- 2-cavity: approx. $1,200
- 4-cavity: approx. $1,600
- Multi-cavity (>4): price negotiable, depending on bottle size and thread finish

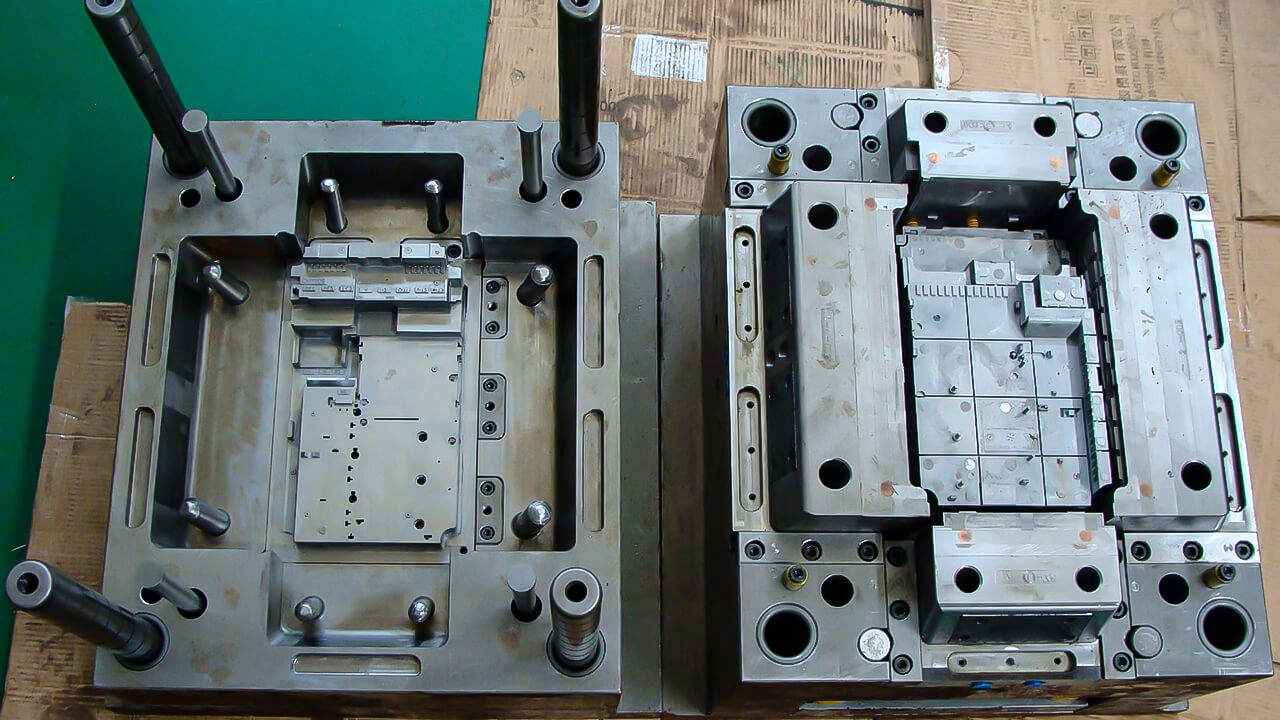

- Injection Molds (for PET or PP Bottles):
- Range: $7,000 – $40,000, based on size, wall thickness, and finish precision
- Common for jar lids, caps, inner cups, and functional closures
- Pump Head Molds:
- A typical pump head consists of 6–8 parts (collar, actuator, spring housing, gasket seat, etc.)
- If all parts use 16-cavity molds, total tooling cost may reach $120,000 or more
- Most brands, however, only customize 2 components (e.g. actuator + threaded collar), which reduces cost to $12,000–$15,000
These numbers only reflect tooling. Unit production cost varies by run volume and material selection, but mold amortization typically becomes profitable after producing 50,000–100,000 units.
Why Do Cavity Numbers Matter So Much?
A mold’s cavity count refers to how many parts it produces per machine cycle. More cavities mean faster output and lower per-unit cost—but they also increase initial investment and require more advanced molding machines.
For example:
- A 4-cavity PET blow mold produces 4 bottles per cycle, ideal for small to mid-volume runs
- A 16-cavity actuator mold is designed for high-volume, automated production lines
As a brand, choosing cavity count depends on your production volume, lead time, and manufacturing partner’s machine capability.
What Goes Into the Cost of a Mold?
According to industry-standard formulas, a mold price includes the following components:
- Raw materials (steel, aluminum, standard components): 15–30%
- Design & CAD engineering: 10–20%
- CNC machining & labor: 40–50%
- Polishing, texturing & surface finish: 5–10%
- Trial runs, quality checks, packaging: 5–10%
Higher precision molds (like those used for airless pumps or click-on caps) may cost more due to tighter tolerances and surface polish requirements.
How Do You Balance Budget and Uniqueness?
A smart strategy is to avoid opening a mold for every component. Instead, identify two or three key parts that contribute most to brand identity. These might be:
- The bottle shape (via PET blow mold)
- The cap or actuator design (via injection mold)
- A signature jar lid with embossing or edge details
By customizing only the visible or interactive components, you can achieve distinctiveness while staying within budget.
What’s the ROI on a Custom Mold?
Although a $10,000 mold may sound expensive, it amortizes quickly for a brand with moderate scale. Let’s say:
- You produce 100,000 units annually
- The mold cost is $10,000
- That’s $0.10 per unit in fixed packaging development cost
More importantly, custom molds reduce your risk of brand dilution, improve shelf visibility, and enable you to apply for design patents or 3D trademarks, which in turn protect your long-term margin.
When Should You Invest?
The ideal timing for mold investment is:
- Post-market validation of your formula or concept
- Before launching internationally, where packaging differentiation is critical
- During a product line extension, where packaging consistency supports brand architecture
Avoid rushing into mold development for untested SKUs. But once repeat orders and market feedback are consistent, tooling becomes not just viable—but necessary.
Summary
Understanding mold cost is essential for cosmetic brands aiming to scale. With the right strategy, a well-designed custom mold isn’t just a cost—it’s an investment in efficiency, brand equity, and product defensibility.
